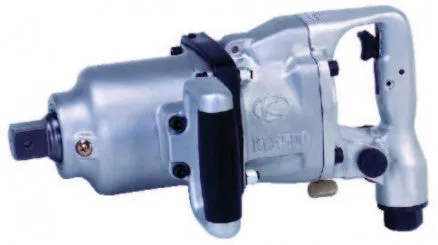

Introducing Zipp Air Tool Heavy Duty Industrial Impact line. These powerful Light weight Impactsξhave the power and durability to handle any task in almost any environment. The ZIW-235 can handle your torque requirements from 740 Ft-lb up to 1,810ξFt-Lb. All at a 90 PSI operating pressure.

Specifications

Drive size	1 in.	25.4 mm
Capacity bolt size	1-3/4 in.	45.0 mm
Recommended torque range	740-1,810 ft-lb	1,000-2,450 Nm
Weight(w/o socket)	23.5 lbs.	10.7 kg
Length(w/o socket)	14-7/16 in.	366.0 mm
Max trque	2,040 ft-lb	2,750 Nm
Free speed	-	3,700 r.p.m.
Impact per min.	-	700 i.p.m.
Air consumption(Normal)	26.5 c.f.m.	0.75 mŒ_(Normal)/min
Hose size	1/2 in.	12.7 mm
Anvil Length	1-1/2 in.	37.0 mm

Performance figures are at 0.62MPa(Pe) (90P.S.I.) air pressure.

• Vibration Levels Up to 4 Times Lower Than Other Impact Designs
• High Quality Japanese Industrial Tools
• One of the Best Power/Weight Ratios Produced in the World
• Reduction of Operator Fatigue Due to Light Weight, Minimum Vibration , and Low Noise Levels
• Patented N-Clutch Design Prevents Lubrication Loss in the Clutch and Minimizes Wear to Extend Tool Life
• Patented N-Clutch Delivers Constant Hittingpower - Does Not Skip
• Increased Durability Achieved by Excellent Clutches and Minimum Air Consumption
• Built in 4 Position Air Regulator Controls Torque
• Built in Oil Reservoir Ensures Constant Air Motor Lubrication
• External Grease Screw for Easy Servicing
• Cushioned Side Handle Insulates and Absorbs Vibration
