The Laguna Tools 37″ wide belt sander is a perfect fit for small woodworking shops. The belt length is 60″ which is the same length as several larger machines. The longer belt means it will not only last longer due to more abrasive material it will also run cooler.

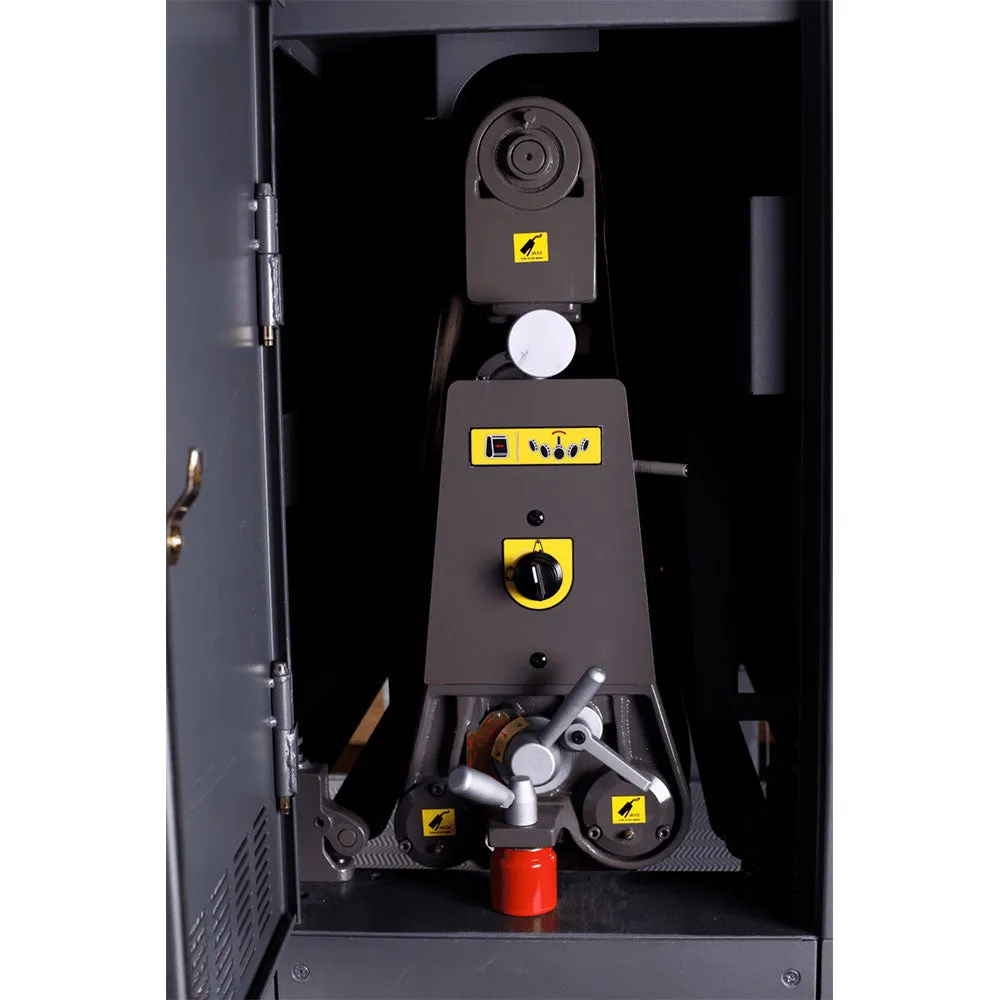

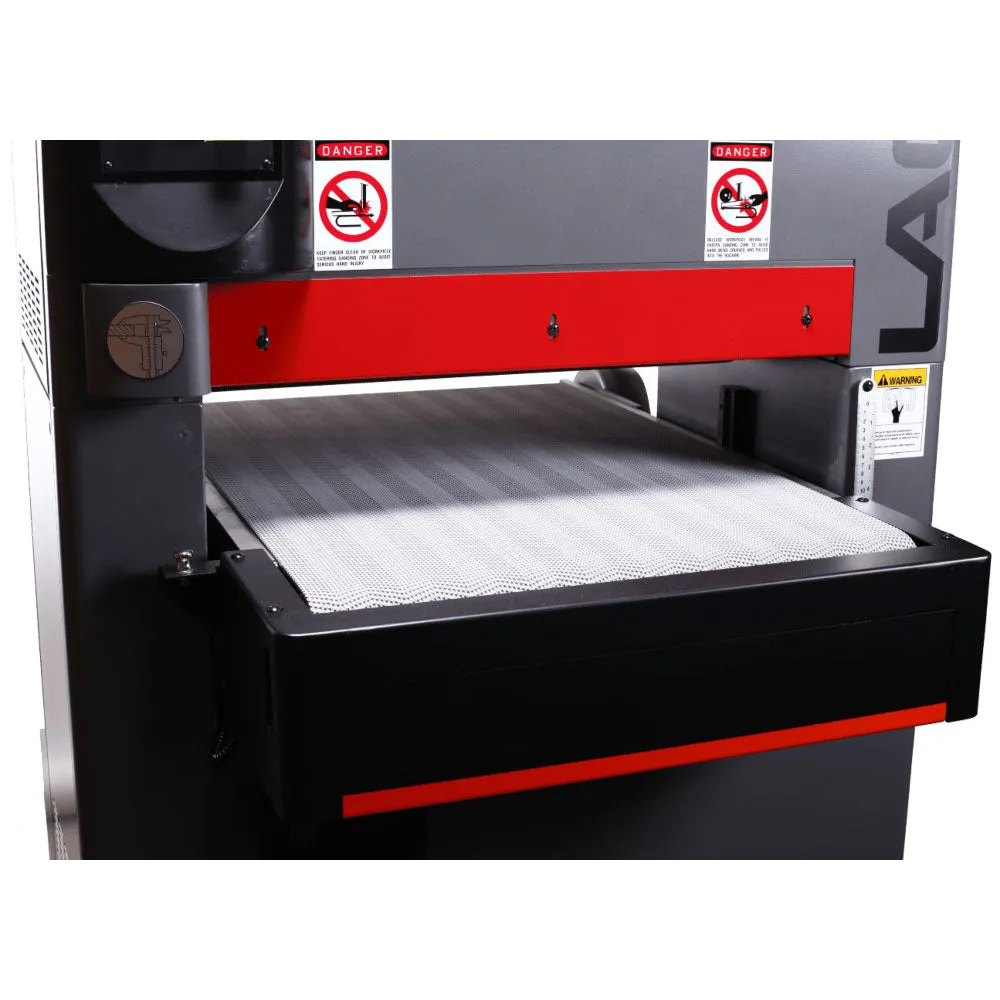

This machine is equipped with 1 combination head. This means you can sand either using the drum or the sanding platen or both at the same time. Due to the large HP motor (10 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used. The heavy carpet feed belt is powered by a separate 1HP motor and has two feed speeds 15″ and 49″ per minute.

All Laguna Tools woodworking machinery carry a 2-year warranty. Must machine within 30 days of purchase.

[TABS]

Specs

Main motor: 10HP
Feed Motor: 1HP
Table lifting motor: 0.25HP
Voltage: 220V / 1phase
Max sanding height: 5-9/10″
Min. sanding height: 1/4″
Max Sanding Width: 36-1/2″ (927 mm)
Sanding Belt Size: 37″ x 60″ (940 x 1,524 mm)
Adjustable Sanding Platen: 3″ (77 mm)
Diameter of Sanding Drum: 4″ (101 mm)
Length of Sanding Drum: 37″ (965 mm)

Additional Specs

Sanding Drum RPM: 1,725
Conveyor Speed: Two Speeds 15′/49′ per min
Dust Port Size: 4″ (101mm)
Number of Dust Ports: 3
Footprint: 19″ x 51″ (483 x 1,300 mm)
Width x Depth: 56-1/2″ x 52″ (650 x 1320 mm)
Height with Dust Collection Ports: 77-1/2″ (1,968 mm)
Height Without Dust Collection Ports: 71-2/3″ (1,816mm)
Conveyor Height At Lowest Setting: 32″ (813 mm)
Cabinet: Steel
Operating Air Pressure: 6 Bar
Sanding Best Oscillation: Adjustable
Sanding Belt Motor Brake: Yes. Air operated disc brake
CSA: Fully Certified
Net Weight: 1,980 lbs.

[/TABS]
