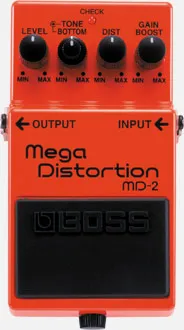

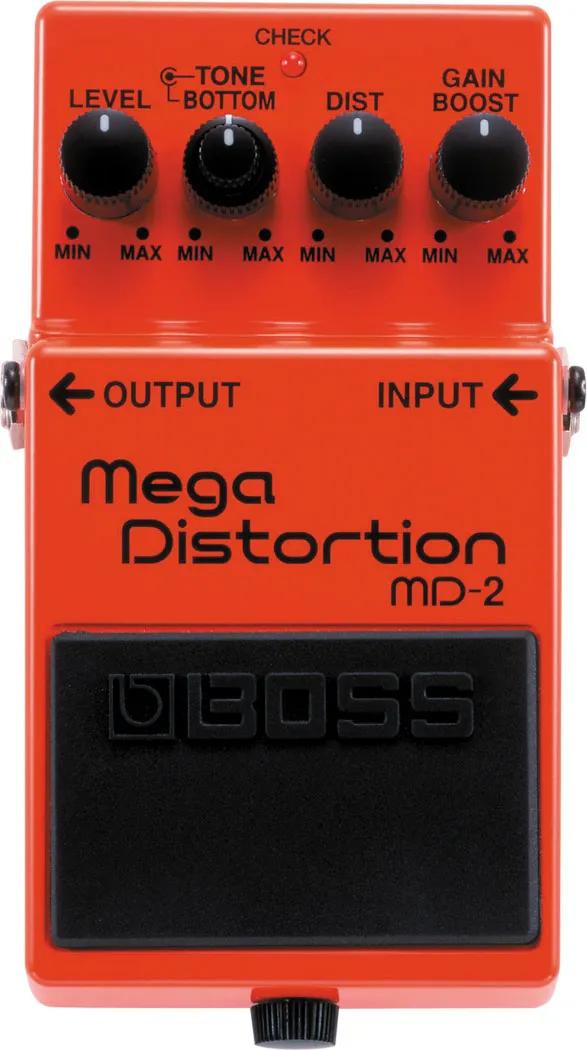

The MD-2 Mega distortion takes the bottom-heavy distortion sounds heard in today's new-school metal and pushes it to the extreme. The secret is a special dual-stage distortion circuit with an added gain boost-plus new Bottom and Tone controls--for crushing distortion with massive low end. Take your distortion into the future with the MD-2.

• Produces extreme, low-end distortion for modern metal and hard rock
• Gain Boost circuit creates huge distortion and sustain regardless of level
• New Bottom control for bottom-heavy distortion matched to 6- or 7-string guitars
• Tone control adjusts balance between high and low frequencies
• BOSS five-year warranty

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

Controls

GAIN BOOST knob
DIST knob
TONE/BOTTOM knob
LEVEL knob
Pedal switch

Indicator

CHECK Indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

20 mA

Expected battery life under continuous use

Carbon: Approx. 16 hours
Alkaline: Approx. 30 hours
* These figures will vary depending on the actual conditions of use.

Accessory

Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

AC Adaptor: PSA series

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

395 g
14 oz

* 0 dBu = 0.775 Vrms.

*The specifications are subject to change without notice.
