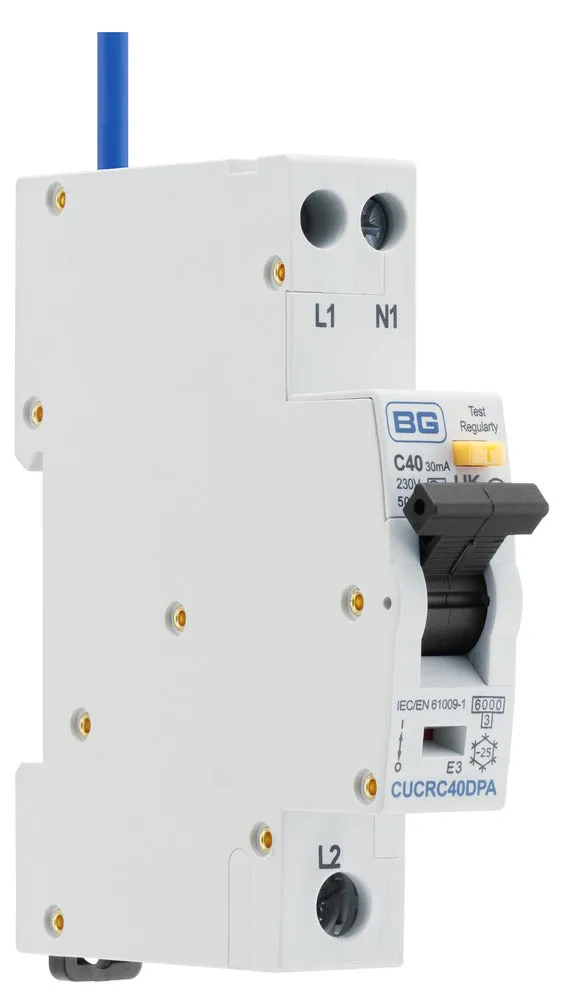

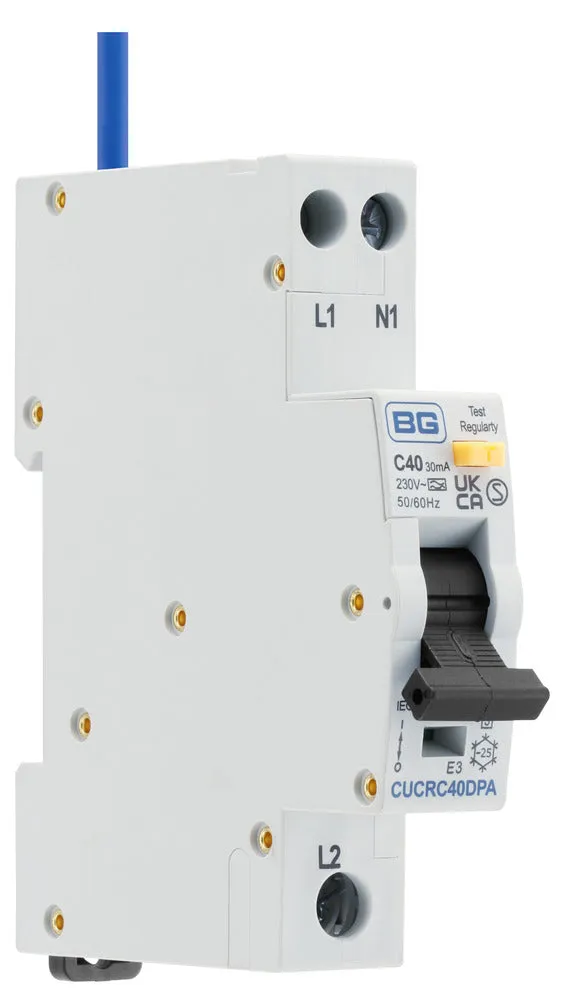

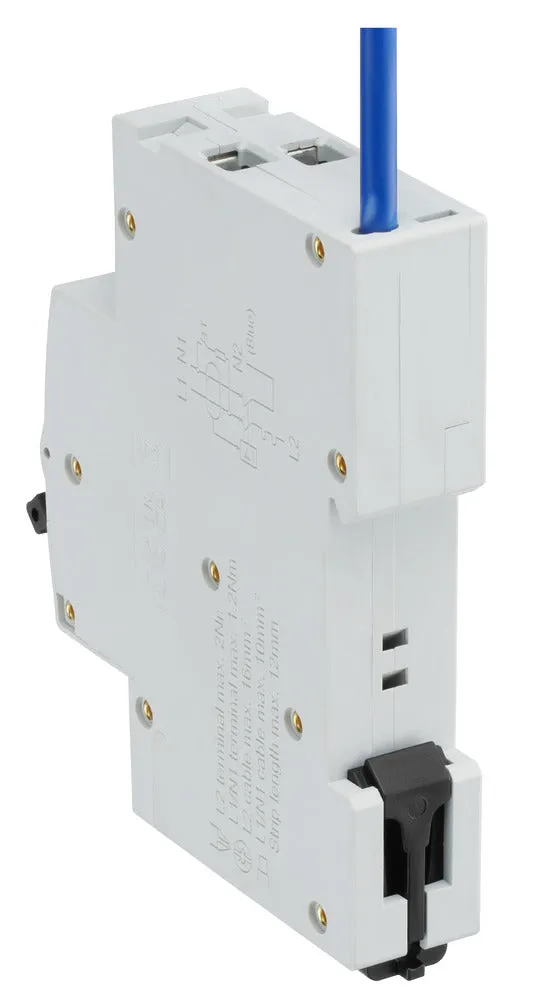

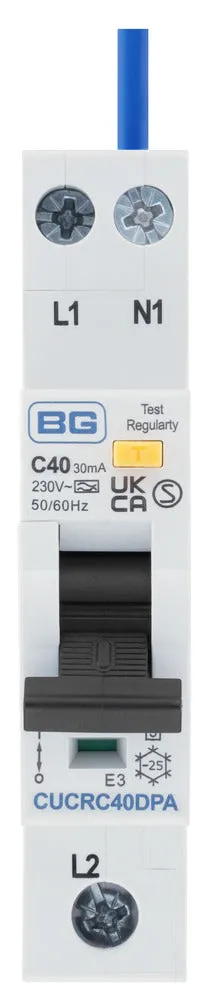

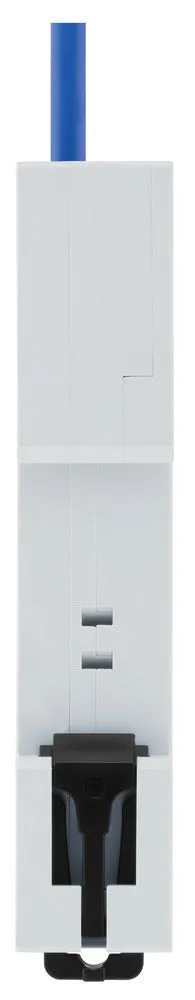

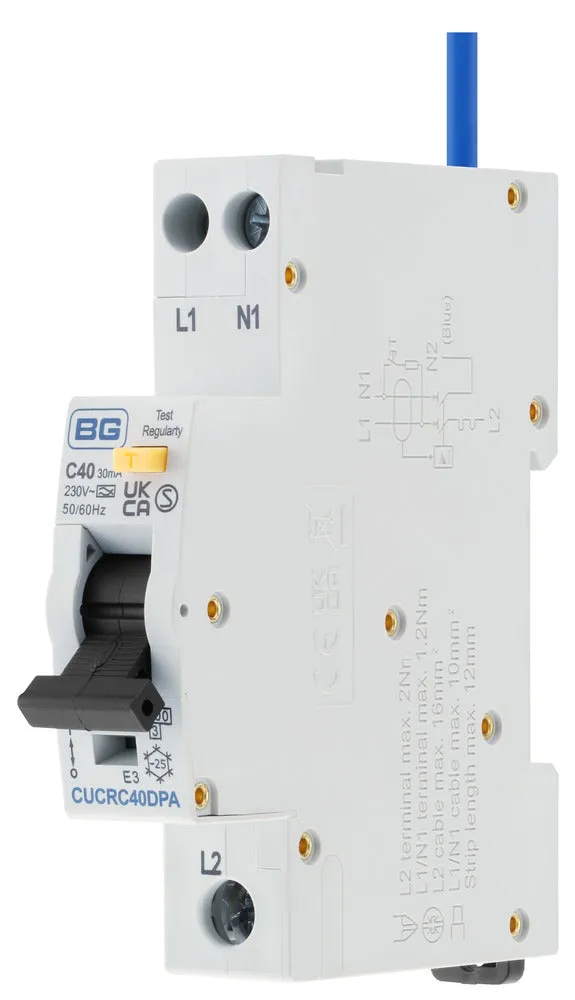

BG CUCRC40DPA 40A Double Pole 1 Module C Curve 6kA 30mA Type A Compact RCBO Bi-Directional
Compact Double Pole RCBO Type AThis Double Pole RCBO provides superior protection for both people and circuits in a single module device. The compact design clips to a standard 35mm DIN rail but the compact body makes it easier to install the BG Fortress Consumer Unit alongside other devices such as MCBs and RCDs, saving space, making wiring easier and with Live and Neutral pole isolation.
Designed specifically for use with EV vehicle chargers to allow for external wiring applications. 18th Edition Amendment 2 compliant.
This item is Compact C Curve 40A 30mA Type A Double Pole RCBO Bi-Directional
Features
- Bi-Directional RCBO
- For Use with BG Fortress Consumer Units
- Positive contact indication status
- C Curve
- Device capable of being locked in the 'ON' or 'OFF' position using a device lock
- Size of an MCB
- DIN rail Mountable
- Type A
- 6kA breaking capacity

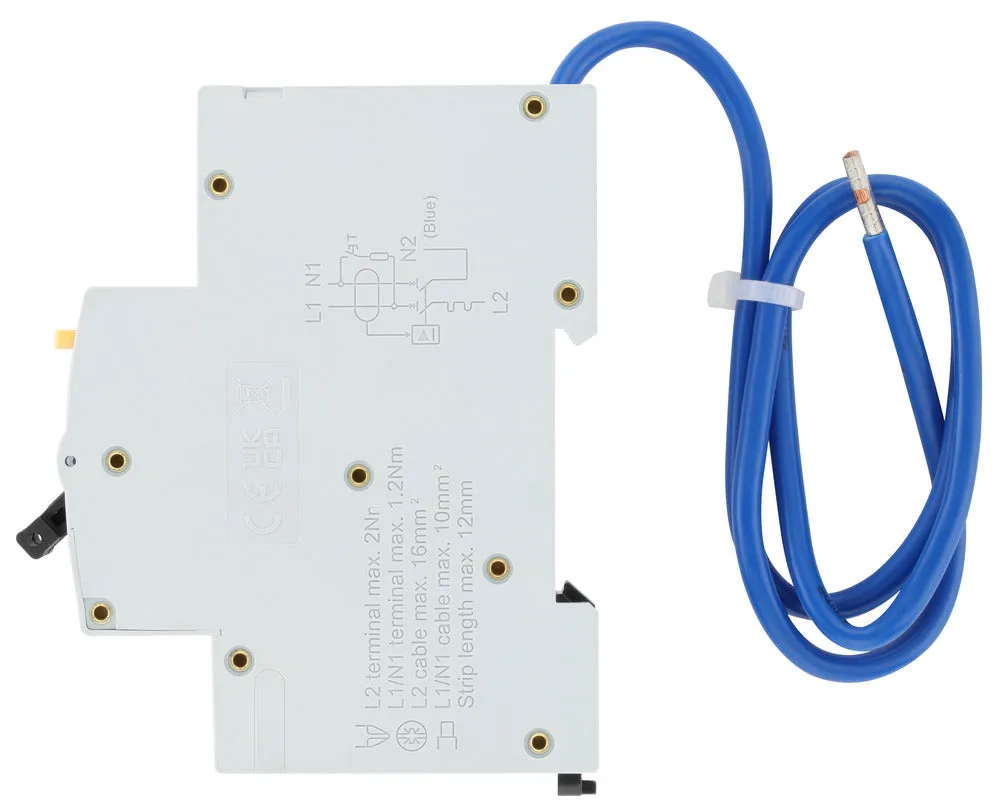

- Integrated Blue neutral lead
- Manual test button
- 18th Edition Amendment 2 compliant
- For use when the EV charger supply cable does not have mechanical protection
Circuit Protection Range Leaflet:
