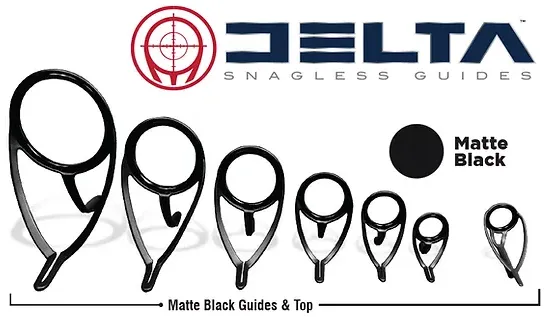

DELTA Matte Finish Snagless Guides
- Snagless design frames and top
- Heavy gauge 316SS frames for improved strength
- Available in the NEW Matte Black
- Double foot design ideal carp, surf, or offshore use
| DELTA Double Foot SS Frame Nanolite Ring | ||||||||
| NANOLITE RING | ||||||||
| Model | Height A | Height B | Height C | Weight | Ring ID | Foot 1 | Foot 1 | Total Length |
| NMBRLD-6 | 5.60 mm | 9.10 mm | 11.30 mm | 0.40 gm | 4.16 mm | 4.50 mm | 5.25 mm | 16.40 mm |
| NMBRLD-8 | 6.40 mm | 11.45 mm | 13.85 mm | 0.70 gm | 5.60 mm | 4.30 mm | 6.05 mm | 18.65 mm |
| NMBRLD-10 | 8.40 mm | 15.50 mm | 17.65 mm | 1.10 gm | 7.40 mm | 6.50 mm | 7.75 mm | 26.35 mm |
| NMBRLD-12 | 8.95 mm | 17.05 mm | 19.85 mm | 1.50 gm | 9.20 mm | 7.20 mm | 9.10 mm | 28.85 mm |
| NMBRLD-16 | 10.45 mm | 21.25 mm | 24.25 mm | 2.40 gm | 11.80 mm | 8.75 mm | 10.90 mm | 36.35 mm |
| NMBRLD-20 | 15.70 mm | 30.55 mm | 33.85 mm | 4.30 gm | 15.20 mm | 9.50 mm | 10.35 mm | 42.50 mm |
| NMBRLD-25 | 18.50 mm | 37.25 mm | 41.20 mm | 6.50 gm | 19.75 mm | 12.60 mm | 13.30 mm | 51.50 mm |
| NMBRLD-30 | 24.80 mm | 49.50 mm | 53.60 mm | 10.40 gm | 25.40 mm | 15.90 mm | 16.35 mm | 65.90 mm |
| NMBRLD-40 | 29.30 mm | 57.50 mm | 62.80 mm | 15.40 gm | 30.05 mm | 17.35 mm | 18.25 mm | 79.25 mm |
| NMBRLD-50 | 40.10 mm | 79.20 mm | 84.90 mm | 26.50 gm | 41.95 mm | 20.75 mm | 20.85 mm | 83.14 mm |
